Flange End Fire Fighting Swing Check Valve

application : General

Place of Origin : Henan, China

power : Manual

structure : Check

customized support : OEM

Product name : Flange End Fire Fighting Swing Check Valve

Keyword : check valve

Calibration range : DN40~DN1600

Pressure level : 1.0~2.5MPa

Temperature range : -10℃~+100℃

Transmission mode : Automatic

Applicable media : Water, oil, gas, etc

Main material : Ductile iron/CS/SS

Type : Check valve

Contact Now

Flange End Fire Fighting Swing Check Valve

Main technical parameters

Nominal pressure	PN10/PN16/PN25/PN40/PN64, 125LB/150LB/300LB, 5K/10K/16K
Face to face standard:	GB/T12221-2005, BS5153, ASME B16.10DIN F6, EN558-1.JIS B2002
Flange connection standard	GB/T17241.6, GB/T9113-2010, EN1092-2 JIS B2212
Test standard	GB/T13927-2008, API598
Applicable media	Water, oil, gas, etc.

Maximum pressure conditions

Size	Max pressure (bar)	Min/Max Temp (℃)	Test Pressure (bar)
			Shell	Seat
DN40-DN600	10.0/16.0/25.0	-10℃ +100℃	15.0/24.0/37.5	11.0/17.6/27.5

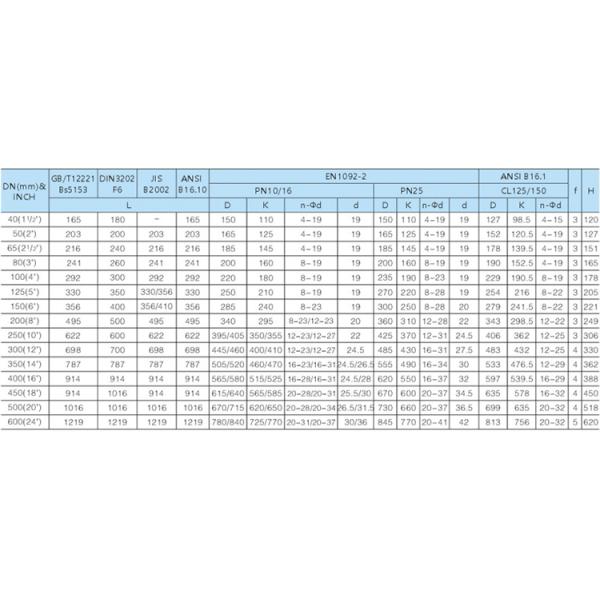

Dimensions

FAQ:

Q. Can I have my own Logo on the product?

A: Yes, OEM service is available.

Q.What information should I let you know if I want to get a quotation?

A: Size, design standard, material, package, Quantities, etc... Please send us some pictures and designs for checking if possible so we can do best as your request. Otherwise, we will recommend relevant products with details for your reference.

Q: What is your terms of delivery?

A: We accept EXW,FOB,CIF,etc. You can choose the one which is the most convenient for you.

Q: What's the package and how do you ship the goods?

A: Usually is wood pallet as your requst. We usually ship by sea. Airline shipping is also optional.
