Product name :Fire Fighting Flange Butterfly Valve
Keyword :Fire Fighting Flange Butterfly Valve
Calibration range :DN40~DN600
Pressure level :1.0~1.6MPa
Temperature range :-10℃~+100℃
Transmission mode :Manual
Applicable media :Water, oil, gas, etc
Main material :Ductile iron/CS/SS
Type :Butterfly valve
Contact Now
Fire Fighting Flange Butterfly Valve
Main technical parameters
Nominal pressure
PN10/PN16/PN25/PN40, 125LB/150LB, 5K/10K/16K
Face to face standard
GB/T12221, API609, EN558-1
Flange connection standard
GB/T17241.6, GB/T9113-2010, EN1092-2
Test standard
GB/T13927-2008, API598
Applicable media
Water, oil, gas, etc

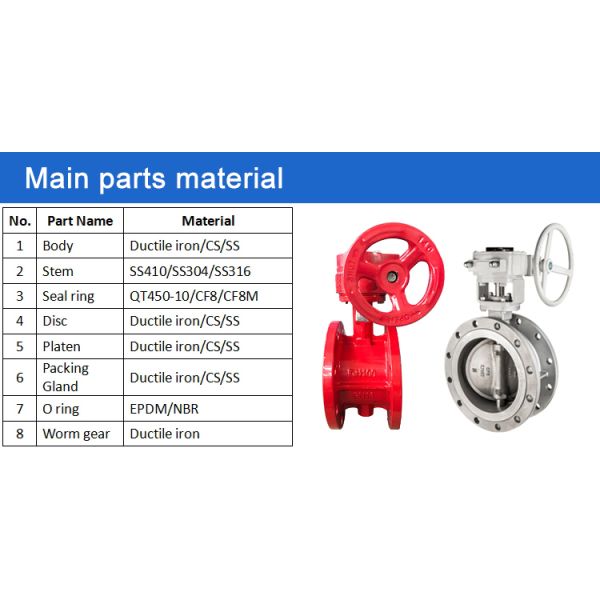

Product structure diagram
Maximum pressure conditions
Size
Max pressure (bar)
Min/Max Temp (℃)
Test Pressure (bar)
Shell
Seat
DN40-DN600
10.0/16.0
-10℃ +100℃
15.0/24.0
11.0/17.6
Dimensions
Ordering notice:
1.Price: The price here is only for reference, the accurate price please contact us to get.
2.Delivery time: The lead time need to calculate according to product parameters, quantity, etc. Please contact us for accurate answer.
3.After-sales service: If you have any questions after you get the product you get from us, please feel free to contact us, we have technical engineer to help you.
